Handheld Pulse Oximeter
Item No.:

Pulse Oximeter, oxymeters
1.8" Color TFT screen
24 hour data record,AAA
batteries,high and low limits
alarm,upload PC via U

Pulse Oximeter

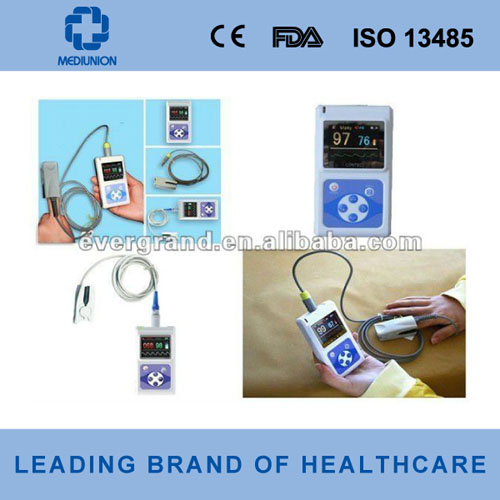

CMS-60D Handheld Pulse Oximeter

CONTEC  CE Approved Handheld Pulse Oximeter Spo2 Monitor
Manufacturer: Contec Medical Systems

Model: CMS 60D Handheld Oximeter

Major Features
Small in volume,light in weight and convenient in carrying

Operation of the product is simple ,low power consumption
Operation menu for the function setting
SpO2 value display
Pulse rate value display, bar graph display
Pulse waveform display
Screen brightness can be changed
A pulse rate sound indication
Review function
With measured data overruns limits and low-voltage alarm function,  the upper/down alarm range is adjustable
Battery capacity indication)
Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage ,and with alarm function
With SpO2 value and pulse rate value of storage, the storage data can be uploaded to computers
Real-time data can be transmitted to computers
Connected with an external oximeter probe
Wireless communication function(CMS60DW)
Main performance
Display Mode: 1.8" Color OLED display

Screen Resolution: 160*128
SpO2 Measuring Range: 0%~100%, (the resolution is 1%).
Accuracy: 70%~100%: ±2% ,Below 70% unspecified.
PR Measuring Range: 30bpm~250bpm, (the resolution is 1bpm)
Accuracy: ±2bpm or ±2% (select larger)
Measurement Performance in Weak Filling Condition:
SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2 bpm or ±2% (select larger).
Resistance to Surrounding Light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than ±1%.
Power Consumption: less than 100mA
Voltage: DC 3.0V
Power Supply: Alkaline battery(2AA)
Battery Working Hour: Theoretical number is 44 hours.
Safety Type: Interior Battery,  BF Type
Sell in standard:

A user manual
A data line
A disk (PC software)
An oximeter probe
Sell in addition:
Other oximeter probe(Refer to probe application instruction for details and notice renewal)
